distributed set of mind

Oredev 2016

demo

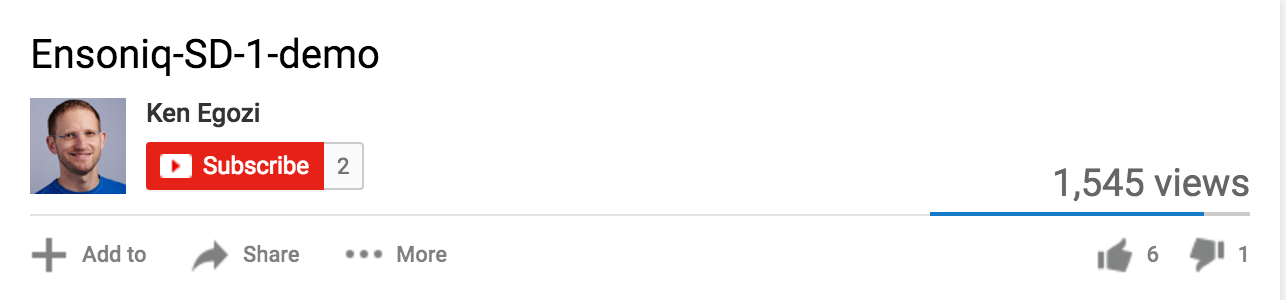

the built in demo track preloaded on my Ensoniq SD-1, the best sequencer / synth ever

uploaded to YouTube to help sell it. I now have a Yamaha digital piano instead

my.age *= 2

did you like it?

how many

numbers in N?

a whole bunch

א0 ∞

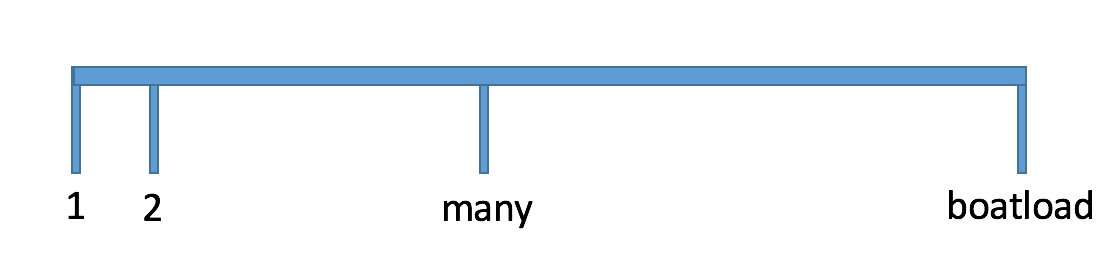

how many

numbers in distributed systems?

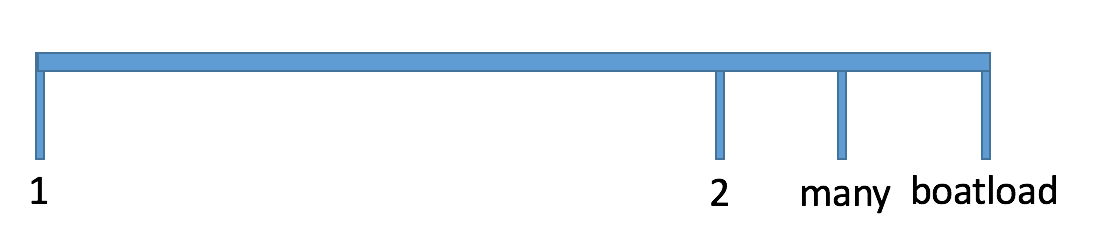

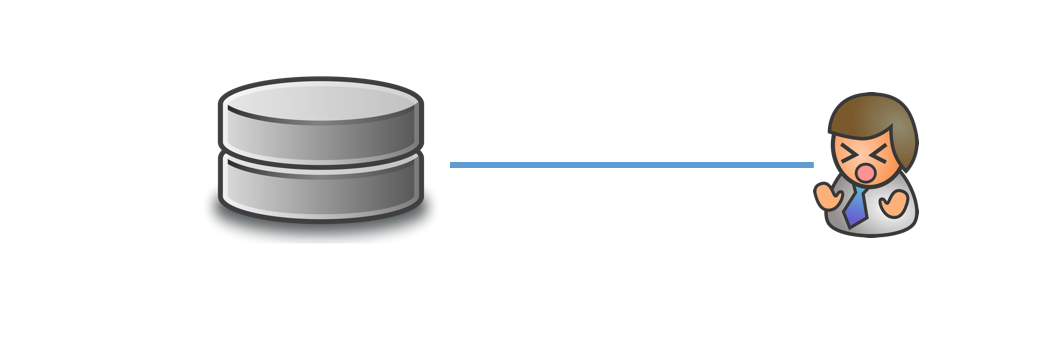

4

1

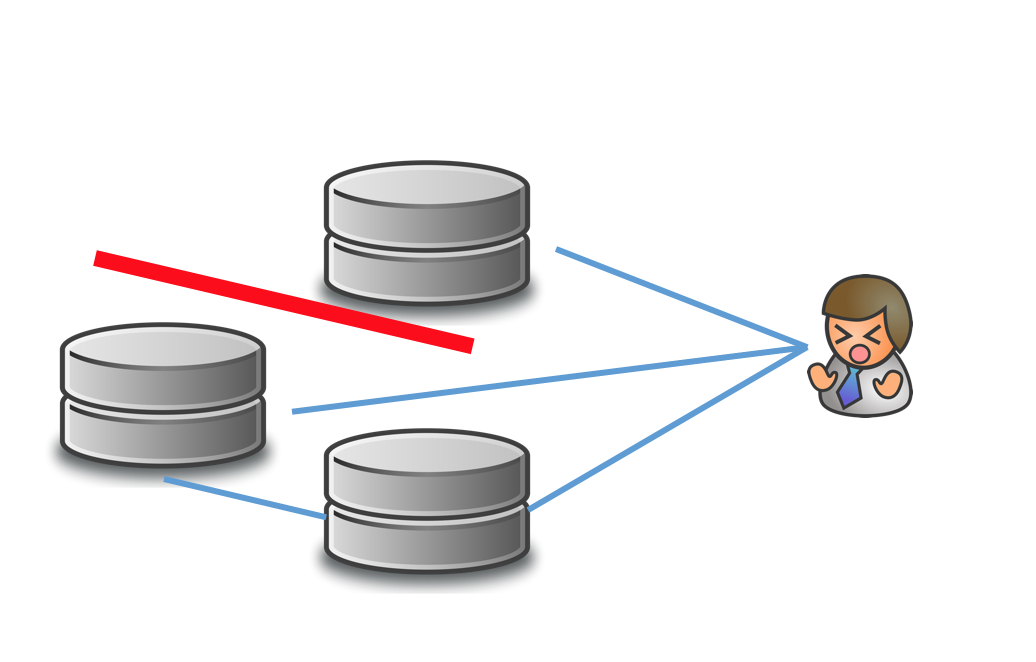

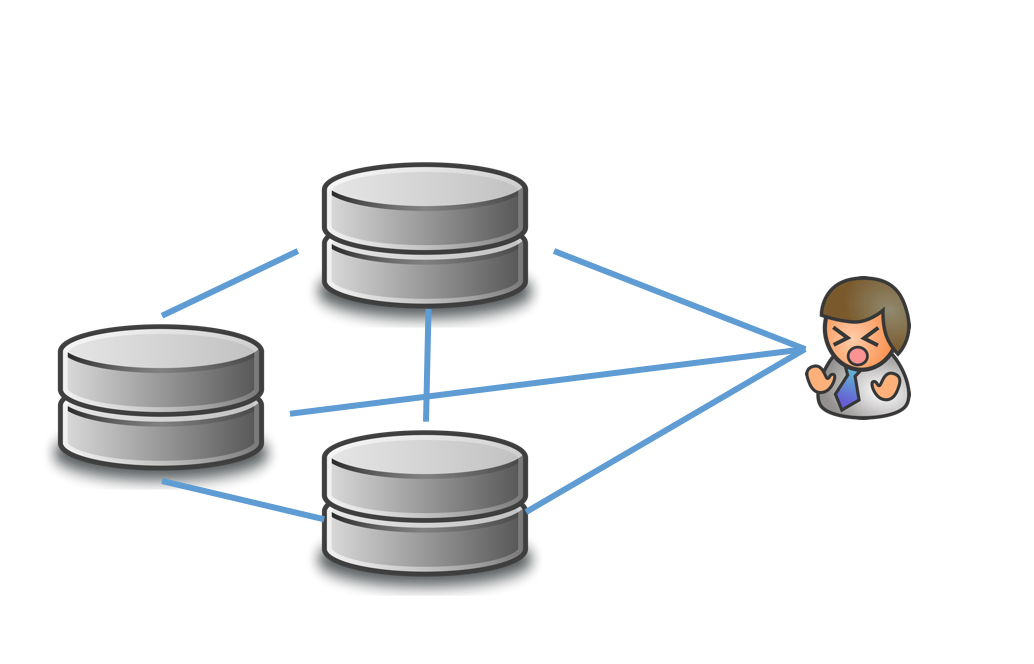

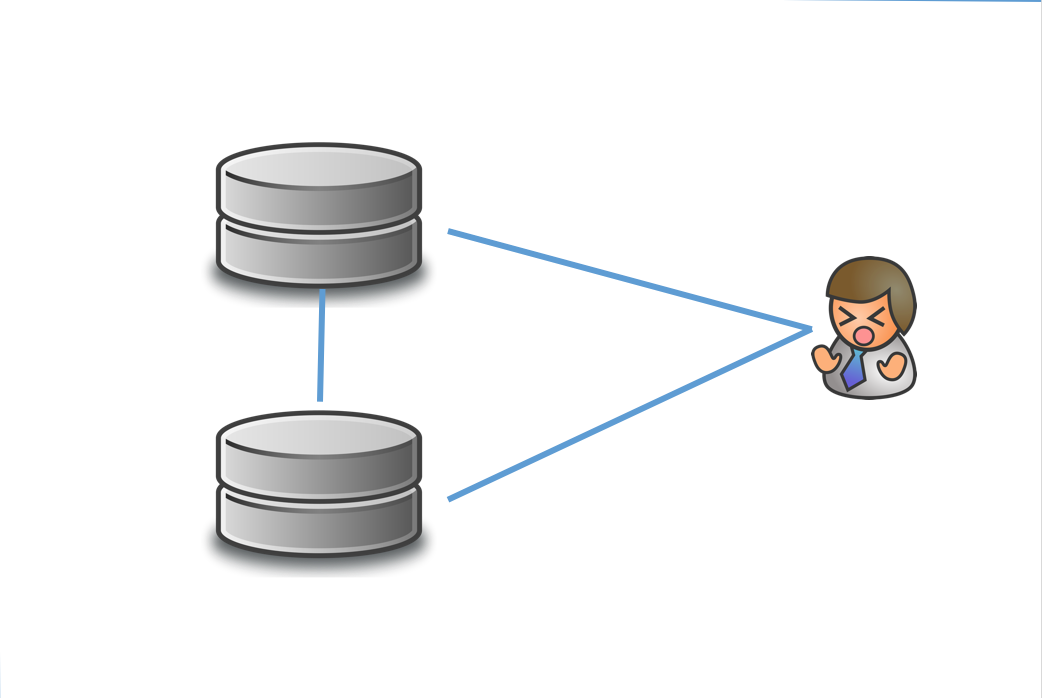

2

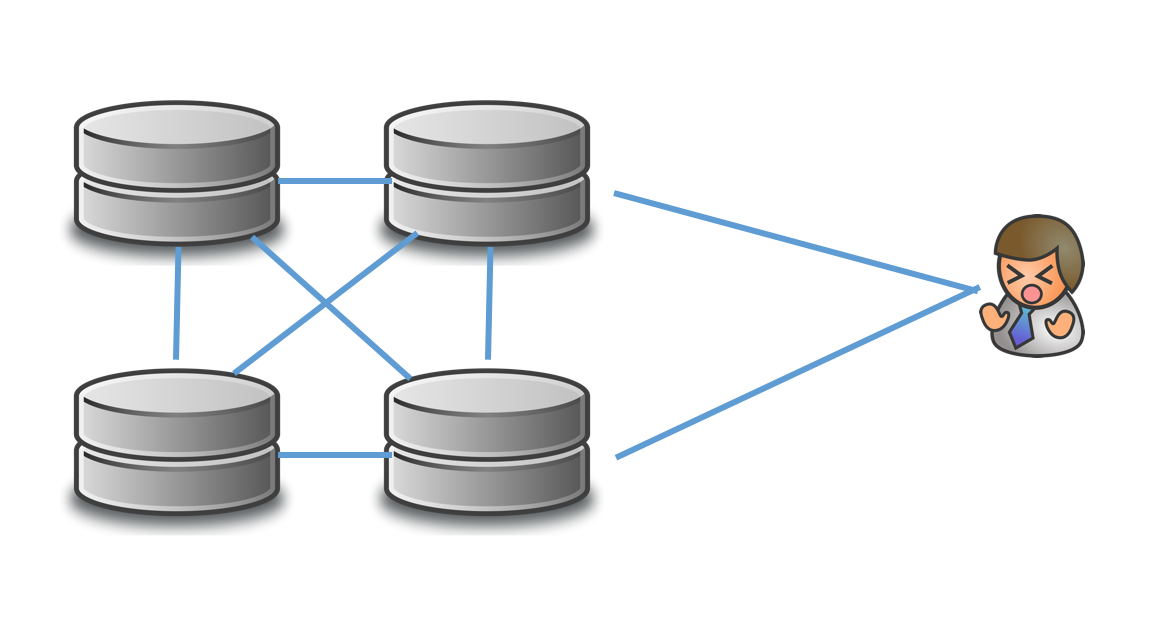

many

many

boatload

like it

thumbsUp.setColorTo(BLUE)

thumbsUp.setColorTo(BLUE)
likesCounter += 1

once upon a time

video sharing service, a novel

social / mobile / local

not actually a video sharing service

do you like it?

v = videos.get(videoID)
v.likesCount += 1
db.store(v)

knock knock   race condition!   who's there?

problem solved

// TODO: not safe, we need to add
// transaction
v = videos.get(videoID)
v.likesCount += 1
db.store(v)

problem solved

UPDATE videos
SET likesCount = likesCount+1
WHERE video_id = $videoID

the plot thickens

like counters, like counters everywhere

UPDATE videos
SET likesCount = likesCount+1
WHERE video_id = $videoID

UPDATE users
SET likesCount = likesCount+1
WHERE user_id = $userID

UPDATE users
SET likesCount = likesCount+1
WHERE user_id = $video.OwnerID
BEGIN TRANSACTION
UPDATE videos ... $videoID
UPDATE users ... $userID
UPDATE users ... $video.OwnerID
COMMIT TRANSACTION

WIN!!!

knock knock   who's there?

DEADLOCK

growth

if (likesCount % 1000 == 0) sendEmail()

email must be sent! but not more than once

partitions, replication, consultants, distributed transaction, background threads, workers, consultants, timers, distributed locks, consultants

rule #1

there is going to be a queue

rule #1b

there already is a queue

fallacies

https://en.wikipedia.org/wiki/Fallacies_of_distributed_computing

http://www.rgoarchitects.com/Files/fallacies.pdf

false

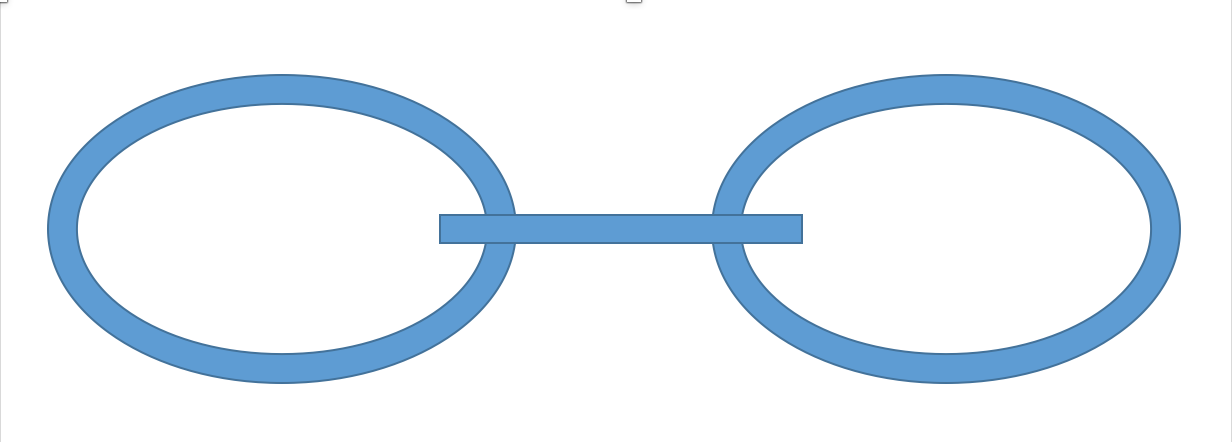

A chain is as strong as its weakest link

9s

99%
X hours per year?
3.65 days per year
Xms per minute?
600ms per minute

9s

99.9%
X hours per year?
8.76 hours per year
Xms per minute?
60ms per minute

9s

99% allow 600ms/min
99.9% allow 60ms/min

young pause ~150ms every ~10secs

9s

Lies, damned lies, and statistics

Systemic failures are a thing

OS update
self-replicating bug
SSL expiration

magic

for web scale apps, we need a web scale database

auto sharding!
5%   5%

after a few months
50%   55%

a couple of months more
85%   95%

a couple of weeks later
90%   100%

auto sharding!
90%   100%   0%

auto sharding?
89%   100%   1%

auto sharding :(
88%   100%   2%

auto sharding @#!$@#$
88%   99%   3%

many hours later ...

auto sharding!
63%   64%   63%

rule #3

If you think it could fail - it might
If you are sure it would not fail, then it most certainly will

you've got mail

delivery guarantees

  • at most once
  • at least once
  • exactly once
  • - queue
  • - durable queue
  • - unicorn

simple is better

the simpler the cheaper and the more reliable

no tx, no ordering, soft guarantees, eventual consistency

upside?

false

A chain is as strong as its weakest link

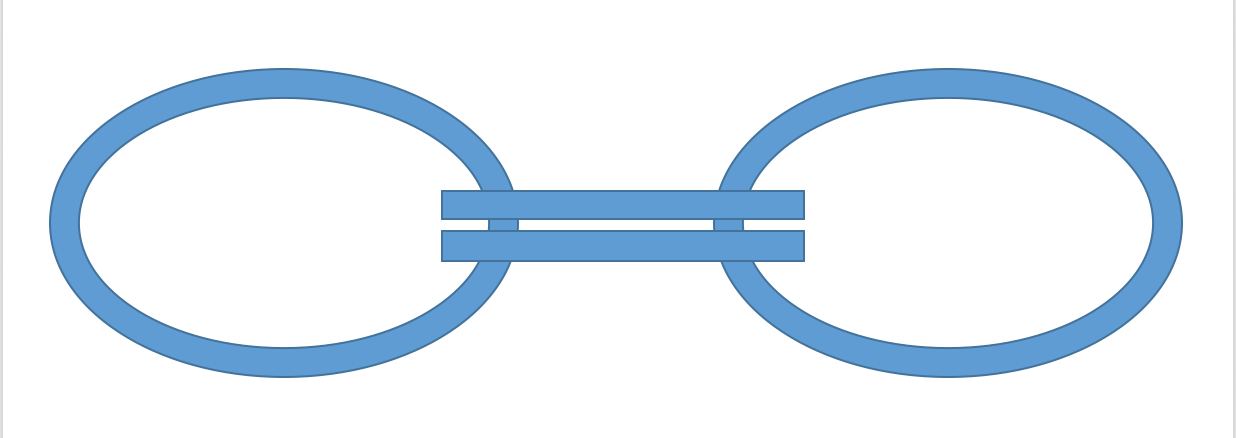

if it is built from single points of failuers

redundencize all the things

9s

break temporal dependence

queues - embrace them
the simpler the cheaper and the more reliable

minimize systemic failure impact
shuffle sharding , regionalization

consistency

vertical context

local concistency

(per Special relativity) - observed order of events depends on frame of reference
It’s usually causal ordering that we’re after anyway. People who say otherwise don’t quite realize that there is no now in a distributed system

back again

local consistency

strong consistency can be bad here!

vertical consistency

perhaps trade availability?

money donations instead of likes

redundancy

write to a queue in Azure
or to a queue in another Azure region
or to a queue in AWS
then fan in

decoupling

fan-out / subscriptions / event-sourcing

contextual and bounded tradeoffs

idempotency

eliminating duplications

capture user's intent

requirements

talk with the customer, listen and explain

magic - explained

for web scale apps, we need a web scale architecture

auto sharding with over-subscription!
1%/1%/1%/1%/1%   1%/1%/1%/1%/1%

auto sharding with over-subscription!
20%/20%/20%/20%/20%   20%/20%/20%/20%/20%

auto sharding with over-subscription!
20%/20%/20%   20%/20%/20%/20%   20%/20%/20%

monitor, practice failures

consistent / rendezvous / jump hashing

recap

  • embrace failure
  • compose complex systems using simple blocks
  • capture intent, align with the customer
  • numbers
  • embrace failure

readings

https://www.awsarchitectureblog.com/

http://udidahan.com/?blog=true

http://arnon.me/

I'm Ken, and I'll be here all week!



@kenegozi
http://kenegozi.com
github.com/kenegozi
